Doughty Heavy Duty Pulley, Quin Sheave

by Doughty
Original price £0
Original price £284.90£237.42
- Original price £496.08£413.40
Original price
Current price £284.90£237.42
£284.90£237.42
- £496.08£413.40
Current price £284.90£237.42

Delivery Lead-Time from Order

The current lead-time for this product if not in stock in our warehouse can vary from 3 to 4 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 3 to 4 week lead-time please pre-order online and we will confirm order details by email after you have ordered.

Description

Doughty Heavy Duty Pulley, Quin Sheave, for Wire or Rope

A quintuple sheave pulley ready to accept any of the Doughty range of fixings.

Available with either 100mm, 150mm or 200mm Diameter, for Wire or Rope.

A range of 100mm heavy duty pulleys with steel plates and nylon sheaves. Complete with ball race bearings, grooved for wire rope and ready to accept any of the Doughty range of fixings

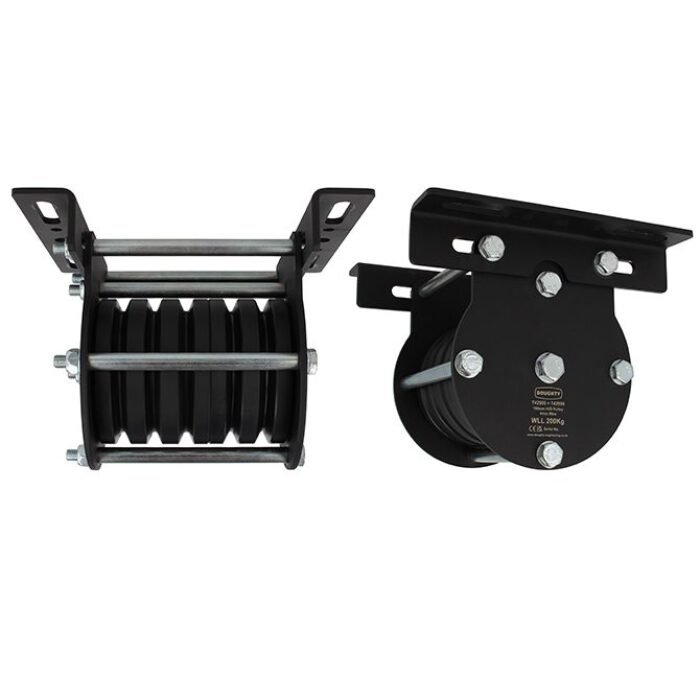

Please note: Pictures are for reference purposes only, fixing brackets shown are extra cost.

Pulleys are supplied without fixing brackets. The fixing brackets will need to be selected and ordered additionally to suit individual requirements. Fixing Brackets must be factory fitted.

The recommended sizes and for Hand Ropes & Wires are:

100mm Diameter Sheave - 12mm Rope – 4mm Wire

150mm Diameter Sheave - 18mm Rope – 6mm Wire

200mm Diameter Sheave - 18mm Rope – 6mm Wire

Spec

300-54-5: 100mm (quin sheave) for wire - SWL 200 Kg

300-55-5: 150mm (quin sheave) for wire - SWL 400 Kg

300-56-5: 200mm (quin sheave) for wire - SWL 600 Kg

300-57-5: 100mm (quin sheave) for rope - SWL 200 Kg

300-58-5: 150mm (quin sheave) for rope - SWL 400 Kg

300-59-5: 200mm (quin sheave) for rope - SWL 600 Kg
