Trailer Winch

Trailer Winch 3T Vertical Mount with Hook & 8mm 12m Wire Rope

by Winch Products
SKU 160-1-6
Availability:
Out of stock
Sold out
£376.80 - £376.80
£376.80
£376.80 - £376.80
£376.80

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

Trailer Winch 3T Vertical Mount fitted with Hook & 8mm 12m Wire Rope

These UK Built Trailer winches are of a high build quality and the best materials are used to ensure a long trouble-free life, needing only the minimum of maintenance. A truly well built product which will reflect the quality you build into your trailer.


✓ All parts are galvanised or zinc plated, offering a superior corrosion resistance.
✓ Gears are machine cut from solid blanks to ensure long life and trouble-free operation.
✓ The body is made from 3 mm steel and is held together with multiple stay pins.
✓ Gravity operated double ratchet has no spring to weaken or lose, plus can never disengage accidentally.
✓ The braking system is simple and automatic to operate.
✓ The mechanical advantage is designed into each winch to keep handle effort low for smooth operation.
✓ The complete winch is enclosed for safe operating, ie trapped fingers in the gears, etc.

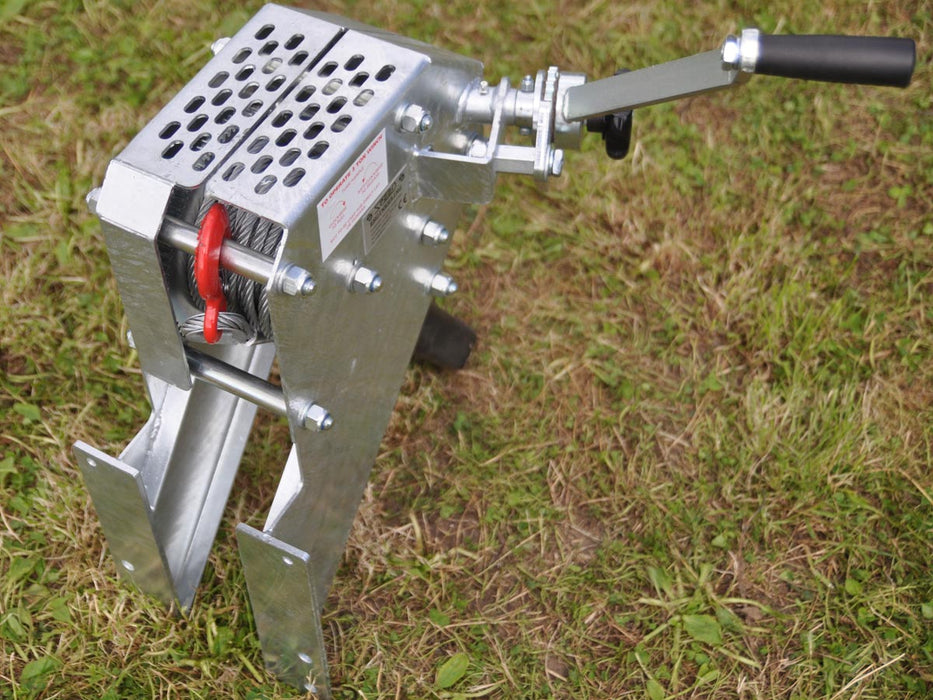

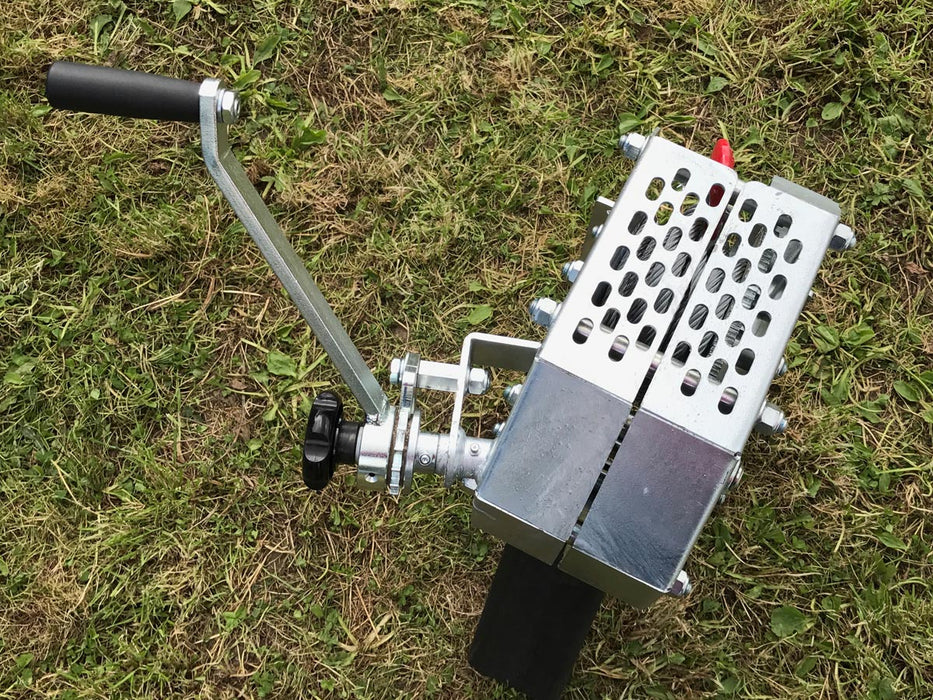

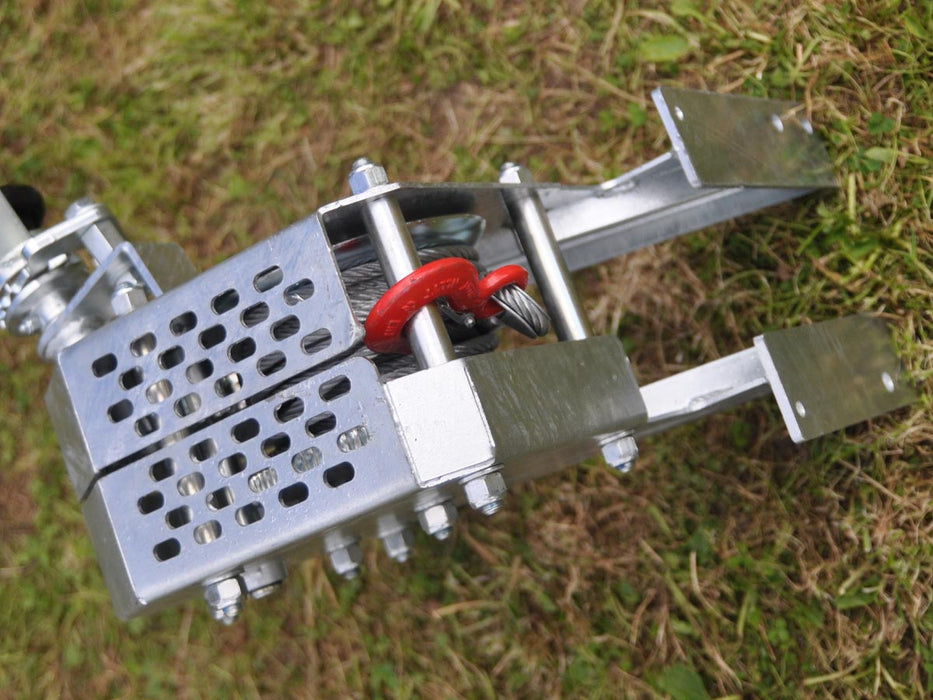

The SP4680B is vertical mounted without the need for a base plate or platform and can be fitted to various trailers, e.g. Ifor Williams ranges LM/CT, Bateson’s General Purpose/Plant, Nugent Beavertail/General Purpose/Flat Bed, Brian James Cargo Connect, as well as other manufacturers.

3000 kg winches are lower geared, so it takes less effort to turn the handle.

Spec

Mount: Vertically mounted
Rating: 3000 kg (3t) rolling weight up a 30 degree slope
Shipping Weight: 24kg

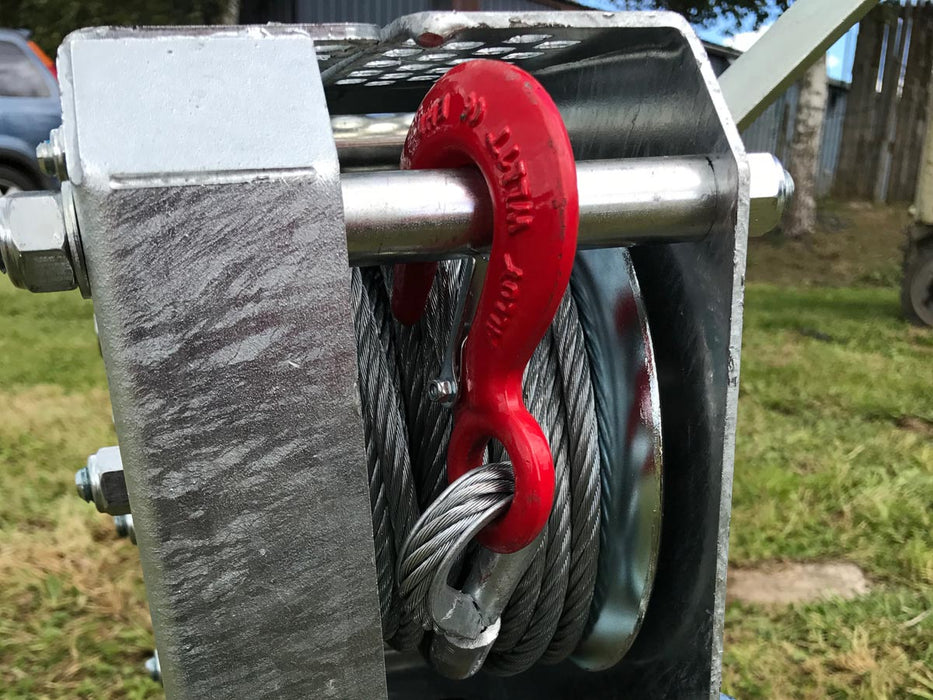

SP4685B comes with an 8 mm diameter x 12 metres long galvanised steel rope with eye hook on the end fitted to the winch. The wire winch can be used to pull at up to 20 degree angle side to side, and even more if using a fair lead. The drum is of a size in diameter that reduces wear and tear on the rope and positive anchorage of the rope to the drum for safety.

Manufactured in the UK

Technical Area

Trailer Winch 3T Vertical Mount data sheetBase plate data sheet

Questions & Answers

Have a Question?

Ask a Question

  • Your 3T Trailer winch: https://www.winchshop.co.uk/collections/boat-trailer-winches/products/trailer-winch-3t-vertical-mount-c-w-hook-8mm-12m-wire-rope-ref-160-1-6 Does this mount to existing holes on a Brian James Cargo-Connect Trailer or does the frame have to be drilled?

    The holes in the vertical winch where made to fit the Ifor Williams trailers so they might fit, this has not been tried on the Brian James cargo connect trailer. You may need to re-drill some of them. Most other makes of trailers people just drill the 4 holes anyway to fit them.

  • Hi, can you advise if the winch number below is suitable for an Ifor Williams LM146T (Tri-Axle), Trailer Winch 3T Vertical Mount C/W Hook & 8mm 12m Wire Rope Ref:160-1-6

    Yes that is the correct one or as an alternative you can use the mounting ref:160-1-7 with any of the 4 horizontal winches on. It is the same but less work to fit.

    Conversion / mounting fitting kit for the Ifor Williams LM range https://www.winchshop.co.uk/products/conversion-fitting-kit-for-the-ifor-williams-lm-range-ref-160-1-7?_pos=3&_sid=41eb157a1&_ss=r

    SpeedWinch Horizontal Trailer Winches; https://www.winchshop.co.uk/search?q=horizontal

    If you have any questions please let me know.

    Winchshop Technical Sales

  • I have an Ifor Williams CT177 car transporter, the trailer previously had a winch and I was looking to add one back on, I have seen this one and wondered if this would be easy to fit. Trailer Winch 3T Vertical Mount with Hook & 8mm 12m Wire Rope SKU :160-1-6 Is there any other parts/fittings that will be needed?

    The winch to fit on the CT177 is the SKU 160-1-4, 3 ton horizontal mounting winch with wire rope which would just bolt onto the plate where the old one had been. https://www.winchshop.co.uk/products/trailer-winch-3t-horizontal-mount-c-w-hook-8m-webbing-ref-160-1-3?_pos=1&_sid=3adfdd6c6&_ss=r   If you wanted the 3 ton vertical (SKU 160-1-6) you would need to cut off the beam across the front of the trailer and drill holes in the front of the trailer to mount the winch.

  • I note your response from the question about compatibility, that you reference a winch PCD to match Ifor Williams LM series . On your PDF there are 2 groups of centre measurements depending on winch size. Which is the same as Ifor Williams LM in order to bolt straight on? Thanks

    For the winches to work on the LM range of trailers a conversion kit is required which can be found HERE

  • Hi. Do you have a 4T version of this winch. I move lathes that are between 3.5 and 4T. The machines are on rollers.

    Hi

    We do not offer any 4T winches in this range, we could offer a wire puller (Link below)

    https://www.winchshop.co.uk/collections/commercial-landscaping-winches/products/copy-of-tiger-wire-rope-puller-type-trps-with-steel-casing?variant=12576396869715
