Green Pin BigMouth Grade 8 Dee Shackle with Safety Nut and Bolt Pin

Green Pin BigMouth Grade 8 Dee Shackle with Safety Nut and Bolt Pin

by Green Pin
SKU 269-27-1
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Sold out
£62.40 - £264.00
£62.40
£62.40 - £264.00
£62.40

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

Green Pin BigMouth Grade 8 Dee Shackle with Safety Nut and Bolt Pin

  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to ASME B30.26.
  • Minimum breaking load is 5 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Certification available

Spec

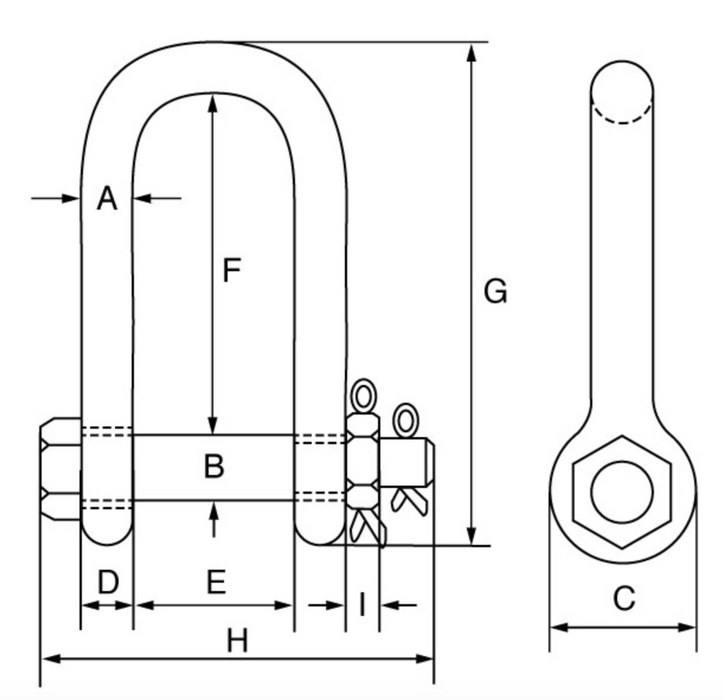

SKU W.L.L. A B C D E F G H I Weight
t mm mm mm mm mm mm mm mm mm kgs
269-27-1 4.6 19 22 46 19 70 116 169 154 19 1.5
269-27-2 8.6 25 28 59 25 83 140 208 190 25 3.15
269-27-3 15.5 38 42 88 38 115 178 281 257 18.5 9
