GT Blue Pin Grade 6 Bow Shackles with Screw Collar Pin

GT Blue Pin Grade 6 Bow Shackles with Screw Collar Pin

by GT Blue Pin
SKU 269-100-1
Availability:
70 in stock, ready to be shipped
Availability:
44 in stock, ready to be shipped
Availability:
122 in stock, ready to be shipped
Availability:
28 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
38 in stock, ready to be shipped
Availability:
72 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
8 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
2 in stock, ready to be shipped
Availability:
12 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
£0.96 - £300.00
£0.96
£0.96 - £300.00
£0.96

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

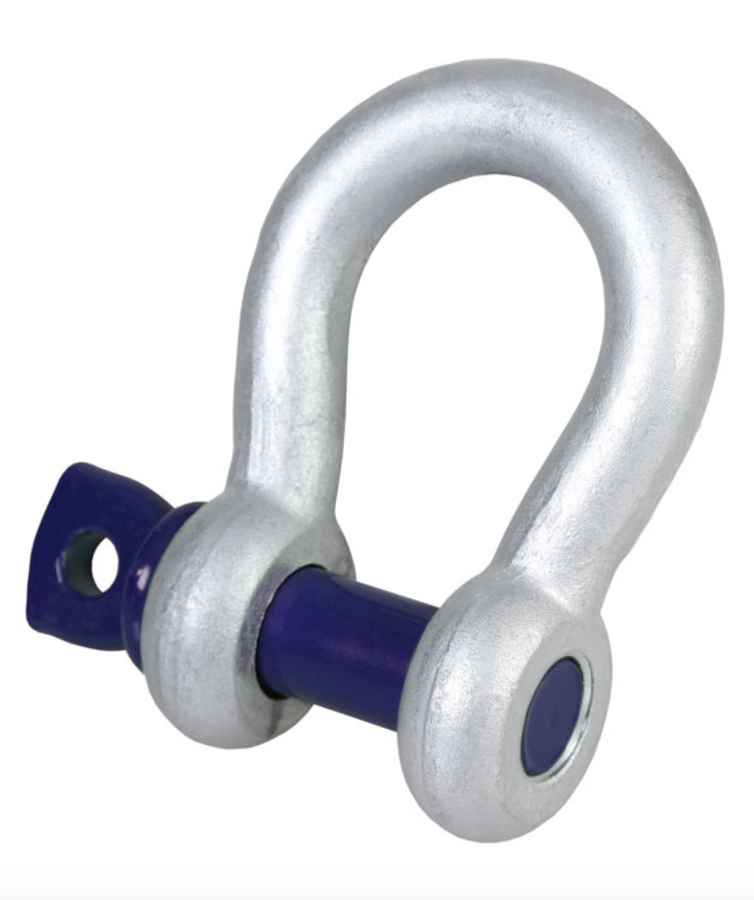

GT Blue Pin Grade 6 Bow Shackles with Screw Collar Pin

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
  • Temperature range 0ºC up to +200ºC.
  • Minimum breaking load is 6 times the W.L.L.
  • Marked with CE, W.L.L, manufacturers ID, size and traceability code.
  • Certification - Declaration of Conformity

Spec

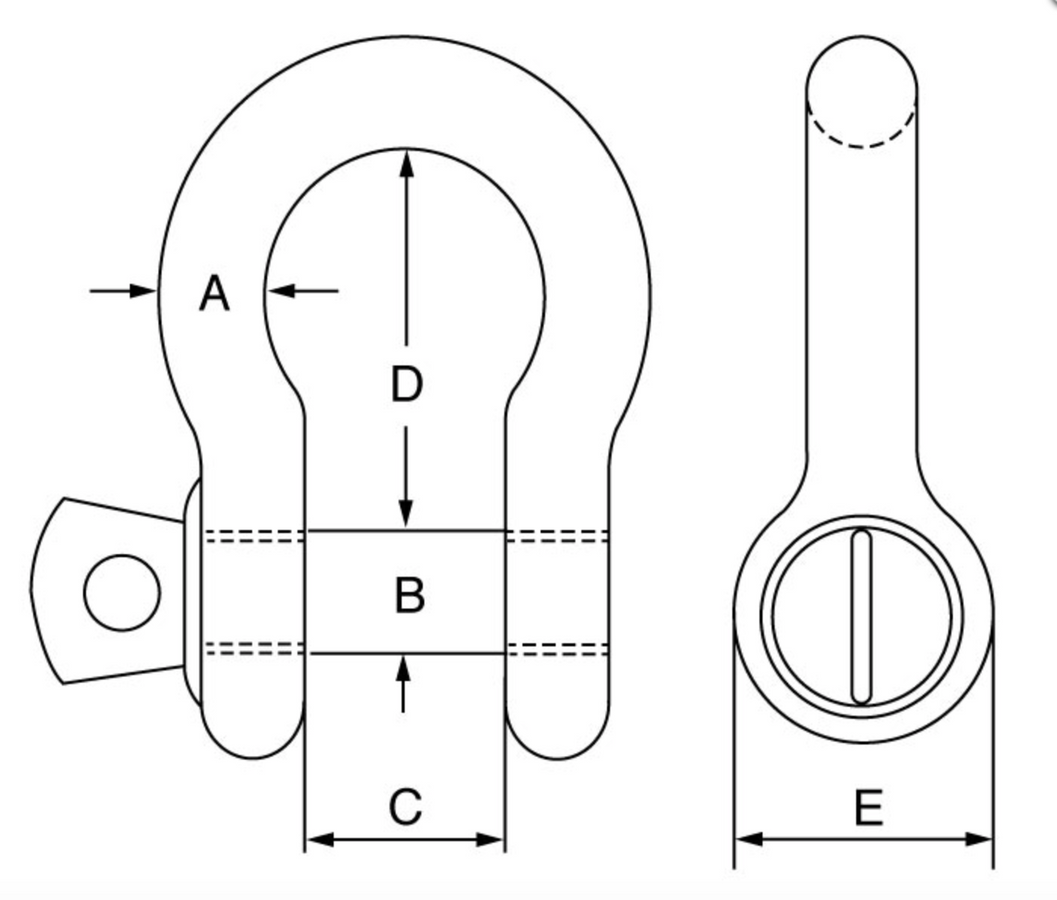

SKU W.L.L. A B C D E Weight
t mm mm mm mm mm kgs
269-100-1 0.33 5 6 9.5 22 16 0.02
269-100-2 0.5 6.4 8 12 28.6 20 0.06
269-100-3 0.75 8 10 13 31 21 0.11
269-100-4 1 9.5 11 17 36.5 26 0.15
269-100-5 1.5 11 12 18 42.5 29 0.21
269-100-6 2 12.7 16 20.6 47.3 32 0.37
269-100-7 3.25 16 19.8 27 60.5 43 0.65
269-100-8 4.75 19 22 32 71.5 51 1.04
269-100-9 6.5 21.7 27 36.6 84 58 1.56
269-100-10 8.5 25.4 30 43 96 68 2.32
269-100-11 9.5 28.5 33 46 108 75 3.28
269-100-12 12 31.5 36 51.6 119 83 4.51
269-100-13 13.5 34.9 39 57 133.5 92 5.93
269-100-14 17 38 42 60 147 99 7.89
269-100-15 25 44 52 73 178 126 13.4
269-100-16 35 50 56 82 197 138 18.85
269-100-17 55 63.5 68 105 267.5 180 37.86
