AG45 - Hand Winch- Washing Line Kit A (152-1-6)

AG45 - 45kg Hand Winch Kits for - Clothes/Washing lines, Fitness Equipment, Chandeliers - plus many others

by Orptech
SKU 152-1-6
Availability:
In stock
Availability:
In stock
£156.00 - £180.00
£156.00
£156.00 - £180.00
£156.00

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

45kg Hand Winch Kits

Compromises;

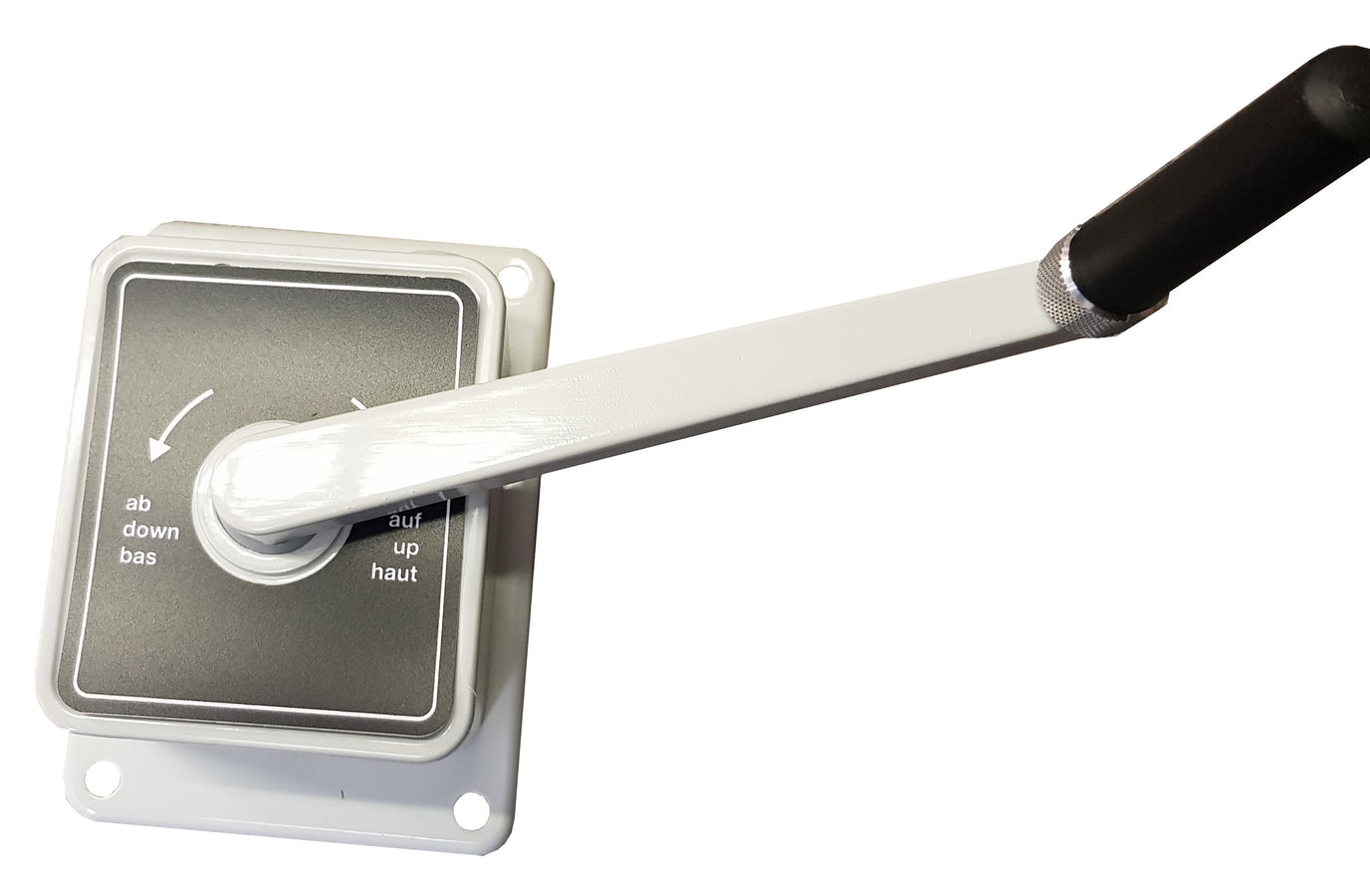

A 45kg hand operated winch (type AG45) designed for light duty application, for example - raising blinds, gym & fitness equipment, shutters, clothes lines, washing lines and chandeliers,
Designed for light duty applications
Aluminium die-cast construction, corrosion resistant parts and powder coated paint finish

Spur gear operation
Self locking brake
Quiet running with low crank effort, removable crank and low weight
Commonly used in washing line applications

Spec

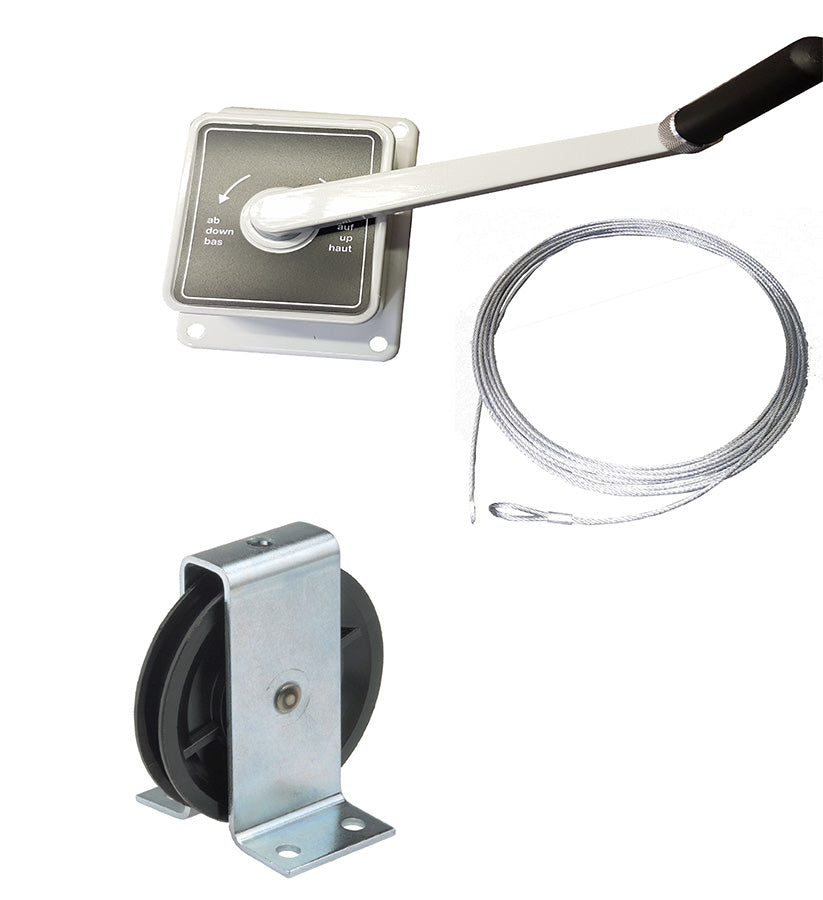

Kit A (152-1-6) Winch comes with:

  • 1 x AG45 Winch with removable handle  SWL 45kg
  • 1 x 2mm dia,12m Galv 7x19, wire rope - loop crimped with aluminium ferrule
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 1 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155-1-1 / 50mm Dia, 60kg Capacity to suit 3mm dia wire rope - useful for diverting wire rope

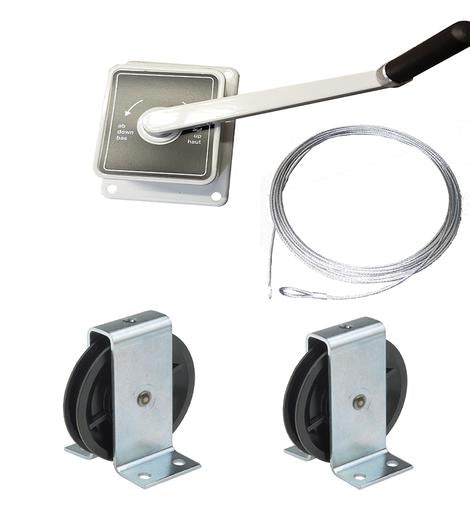

Kit B (152-1-7) Winch comes with:

  • 1 x AG45 Winch with removable handle  SWL 45kg
  • 1 x 2mm dia,12m Galv 7x19, wire rope - loop crimped with aluminium ferrule
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 2 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155-1-1 / 50mm Dia, 60kg Capacity to suit 3mm dia wire rope - useful for diverting wire rope

Technical Info

Data sheet

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paolo
A perfect kit for my needs

I needed to hang a chandelier in a stairwell. Given that I had the attic above, I thought I would install a winch so that the fixture could be safely lifted in place and lowered as needed for cleaning & service. WinchShop was excellent in answering my questions and pointed me to the AG45. The installation was easy and WinchShop was helpful again promptly checking a few details for extra safety. All in all, great pre/post-sale experience and a great product!

P
Paolo
A perfect kit for my needs

I needed to hang a chandelier in a stairwell. Given that I had the attic above, I thought I would install a winch so that the fixture could be safely lifted in place and lowered as needed for cleaning & service. WinchShop was excellent in answering my questions and pointed me to the AG45. The installation was easy and WinchShop was helpful again promptly checking a few details for extra safety. All in all, great pre/post-sale experience and a great product!

P
Paolo
A perfect kit for my needs

I needed to hang a chandelier in a stairwell. Given that I had the attic above, I thought I would install a winch so that the fixture could be safely lifted in place and lowered as needed for cleaning & service. WinchShop was excellent in answering my questions and pointed me to the AG45. The installation was easy and WinchShop was helpful again promptly checking a few details for extra safety. All in all, great pre/post-sale experience and a great product!

P
Paolo
A perfect kit for my needs

I needed to hang a chandelier in a stairwell. Given that I had the attic above, I thought I would install a winch so that the fixture could be safely lifted in place and lowered as needed for cleaning & service. WinchShop was excellent in answering my questions and pointed me to the AG45. The installation was easy and WinchShop was helpful again promptly checking a few details for extra safety. All in all, great pre/post-sale experience and a great product!

Questions & Answers

Have a Question?

Ask a Question

  • How is the wire rope lock and unlocked. The wall on which the winch will be filled is where a door open on to, I would prefer not to have to remove the handle every time that I use the down can you inform me how far the winch projects from the wall with and without the handle inserted. Thanks Roy

    Hi Thanks for the enquiry,

    The rope locks and unlocks under load with a Self locking brake, dimensions can be found on the data sheet link below:

    https://cdn.shopify.com/s/files/1/1563/3349/files/handwinch_ha-ag.pdf?11625816886991721240

    HA-AG winches are all in stock.

    Web Team

  • Do you ship to Norway

    Hi

    Yes we ship world wide weekly.

    Web Team

  • How does the rope connect to the drum?

    The wire is grub screwed (pinched) onto a groove in the drum.

  • I would like to use a 2.5mm or 3mm Dyneema rope rather than a wire rope

    Regarding the Dyneema, I can’t guarantee this as per the manual it states rope should be to EN 1285-1 and EN 12385-4, some cuistomers have used Dyneema and had no problem. As long as the rated capacity of the rope is ok, it is secured well and has 2-3 rotations on the drum payed out I can’t see there being an issue, however anything outside of the specification of the manual is to your clients risk.

  • Hello, Can I use a 3 mm or 4 mm wire rope with the HA-AG-45? Thanks, Chris

    Hi Chris,

    Depending on how much rope you wish to fit you might get away with 3mm but will struggle with 4mm, another option is to fit 2mm as recommended then connect this to your 3 / 4mm cable if you alreday have an existing installation.

    Regards

    Web Team
