6,000kg Capacity GT Viper Lever Hoist

6,000kg Capacity GT Viper Lever Hoist

by GT Viper
SKU 286-517-1
Availability:
In stock
Availability:
In stock
£396.00 - £450.00
£396.00
£396.00 - £450.00
£396.00

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

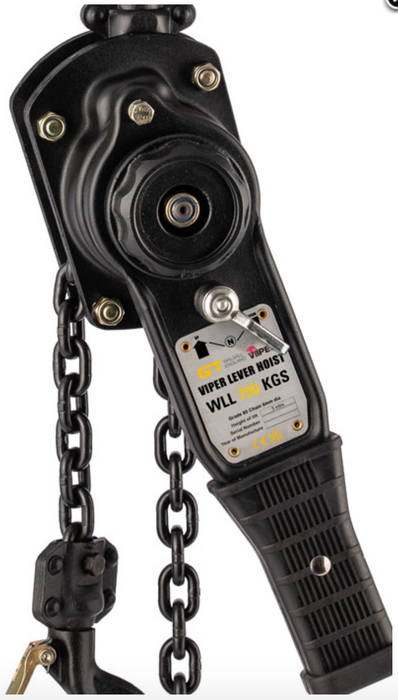

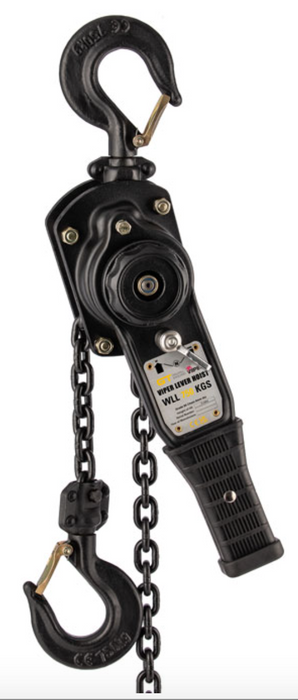

6,000kg Capacity  GT Viper Lever Hoist

  • Lightweight and robust ensuring reliability in every position.
  • High grade steel body protects gears and brake system.
  • Matt black finish.
  • Meets the W.L.L. performance requirements of BS EN 13157.
  • Minimum break load 4 times the W.L.L.
  • Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
  • Easy to use free wheel mechanism that enables chain to be pulled freely when not under load.
  • Short arm lever and special gear ratio allows an easy lift with minimum stress and maximum security.
  • Marked in accordance with BS EN 13157.
  • Certification available



    Spec

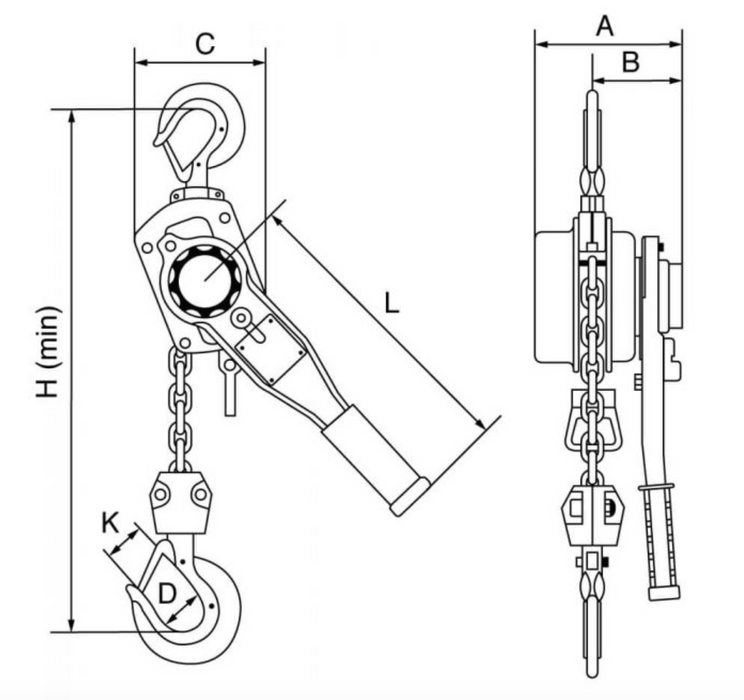

     Product Code Capacity A B C D H L K Load Chain Falls of Chain
     1.5m 3m Carcase kgs mm mm mm mm mm mm mm mm
    286-517-1 286-517-2 286-517-3 6,000 200 115 235 64 600 375 50 10 x 30 2



    Technical Data

    Capacity Running Test Load Effort Req'd to Lift Rated Load Weight Extra Weight per mtr
    kgs kN kN kgs kgs
    6,000 75 500 29.4 4.4


    User Manual
