IMER ET200 Scaffold Hoist 200kg - 110v

Name: IMER ET200 Scaffold Hoist 200kg - 110v
Brand: IMER
SKU: 294-1-4
Price: 1334.4 GBP
Availability: InStock

by IMER

SKU 294-1-4

Availability:

In stock

£1,334.40 - £1,334.40

£1,334.40

£1,334.40 - £1,334.40

£1,334.40

Quantity

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

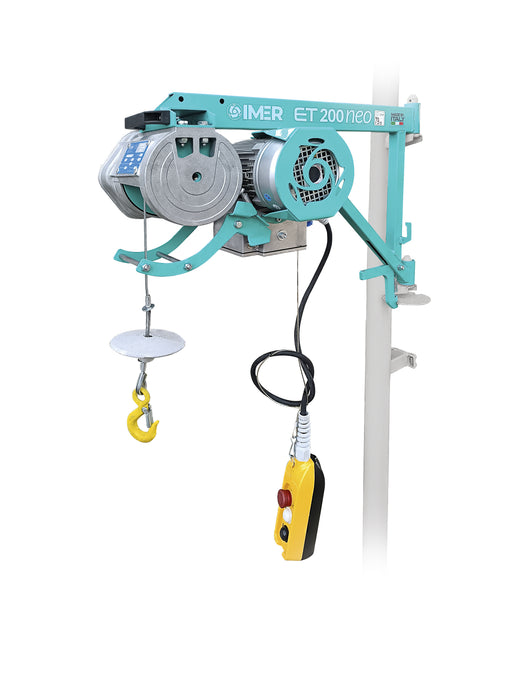

IMER ET200 Scaffold Hoist 200kg - 110v - 30m High Capacity

IMER Scaffold Hoists are the perfect, high-end equipment for any scaffolding job! IMER Scaffold Hoists are often used by large and small contractors alike.

This pivoting 200kg electric hoist with a lifting height of 30m is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely.

It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook.

The ET200 IMER Scaffold Hoist - 200Kgs is supplied with a top mounting bracket and the Scaffold connection pole from Imer is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. The hoist is a 110-volt power supply and is supplied with a waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from over lifting of goods.

110v (SKU 294-1-4) or 230v (SKU 294-1-3) versions available.

Note - This is a Scaffold Hoist ONLY, not the complete kit with 3 Point Fixing Scaffold Attachment (see 294-1-6 or 294-1-7 for complete kits).

Spec

SKU		294-1-4
Max Capacity	kg	200
Av. Full Load Lifting Speed	m/min	19
Max. Working Height	m	30
Steel Rope Dia.	mm	5
Rope Length	m	31
Electric Power Supply	V /Hz	110 / 50 Sph
Motor Power Rate	kW	0.75
Motor Speed	rpm	1380
Running Current 230v (110v)	A	7.2 (14)
Weight	kg	42
Dimensions w/l/h	mm	330/770/520
Packing Dimensions w/l/h	mm	350/820/500

Downloads

Questions & Answers

Have a Question?

Ask a Question

What size transformer is best to run these IMER hoist ES 150 and ET 200 off

A 5KVA Transformer, 2.5mm lead no more than 14 meters in length.
