PCH1000 Petrol | 775kg Pulling & 250kg Lifting Capstan Winch

PCH1000 Petrol | 775kg Pulling & 250kg Lifting Capstan Winch

by Portable Winch
£3,598.80 - £3,598.80
£3,598.80
£3,598.80 - £3,598.80
£3,598.80

Delivery Lead-Time from Order

The current lead-time for this product if not in stock in our warehouse can vary from a few days to 8 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with up to an 8 week lead-time please pre-order online and we will confirm order details by email after you have ordered.

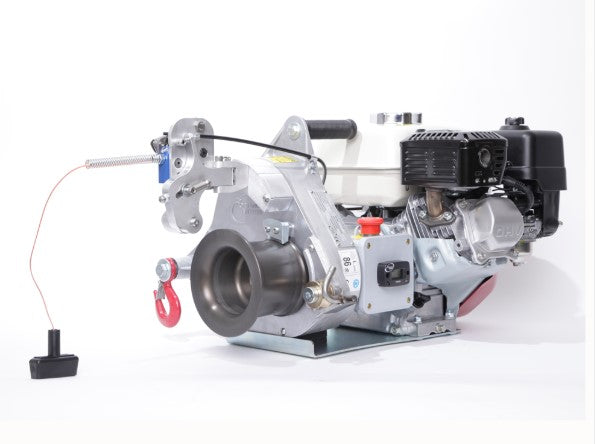

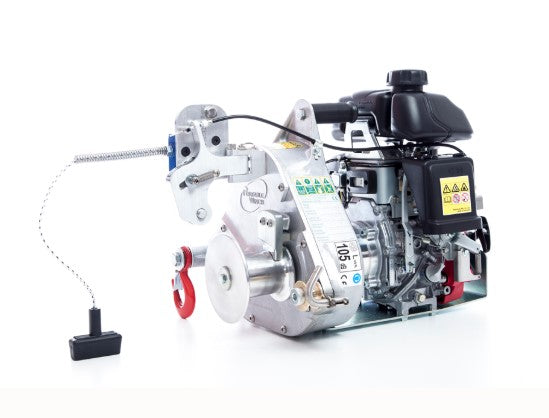

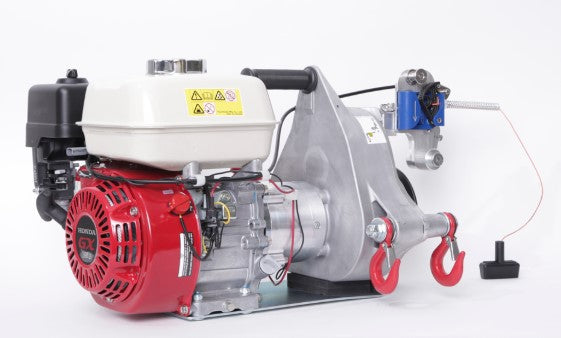

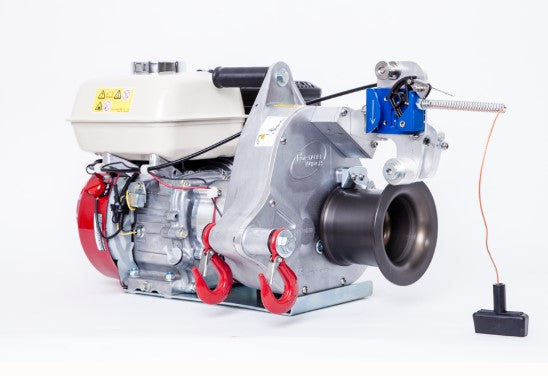

PCH1000 Petrol Winch Pull/Lift Version

The ideal tool for lifting a load!

The PCH1000 has been designed specifically for lifting applications on a work site such as assembling telecommunications structures or installing various equipment. It can lift a load of 250 kg with a single line and a pulley system doubles the strength to 500 kg.

Its integrated rope grabbing system (brake) will hold the load in position allowing the operator to work safely.

This system can be used to lift or lower a load. A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.

Find out more by downloading the user manual.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001130






Spec

PCH1000 Petrol Winch Pull/Lift Version Ref: 167-3-1

Manufacturer PORTABLE WINCH
Max Pull Capacity 775kg
Max Lifting Capacity 250kg
Installed Capstan Size 57mm (Optional 85mm Drum Available - Reduces Load Capacity)
Speed with Installed Capstan 12 m/min
Rope Size Min 12mm | Max 13mm | Ideal 12mm

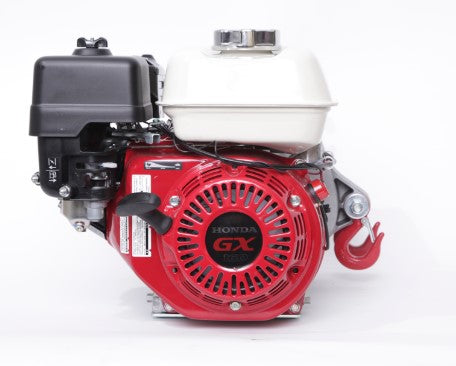

Engine/Motor Honda 4-stroke GXH-50 cc
Gear Ratio 110:1
Dry Weight 19kg
GTIN / EAN13 690581001130



Tech Area

  User Guide


Video





Description


PCH1000 Petrol Winch Pull/Lift Version

The ideal tool for lifting a load!

The PCH1000 has been designed specifically for lifting applications on a work site such as assembling telecommunications structures or installing various equipment. It can lift a load of 250 kg with a single line and a pulley system doubles the strength to 500 kg.

Its integrated rope grabbing system (brake) will hold the load in position allowing the operator to work safely.

This system can be used to lift or lower a load. A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.

Find out more by downloading the user manual.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001130






Spec

PCH1000 Petrol Winch Pull/Lift Version Ref: 167-3-1

Manufacturer PORTABLE WINCH
Max Pull Capacity 775kg
Max Lifting Capacity 250kg
Installed Capstan Size 57mm (Optional 85mm Drum Available - Reduces Load Capacity)
Speed with Installed Capstan 12 m/min
Rope Size Min 12mm | Max 13mm | Ideal 12mm
Engine/Motor Honda 4-stroke GXH-50 cc
Gear Ratio 110:1
Dry Weight 19kg
GTIN / EAN13 690581001130



Tech Area

  User Guide


Video
