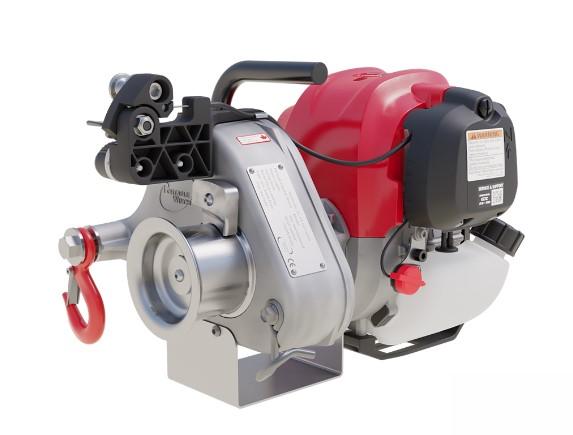

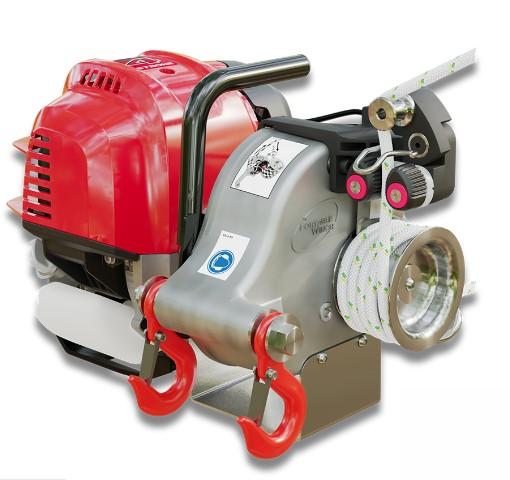

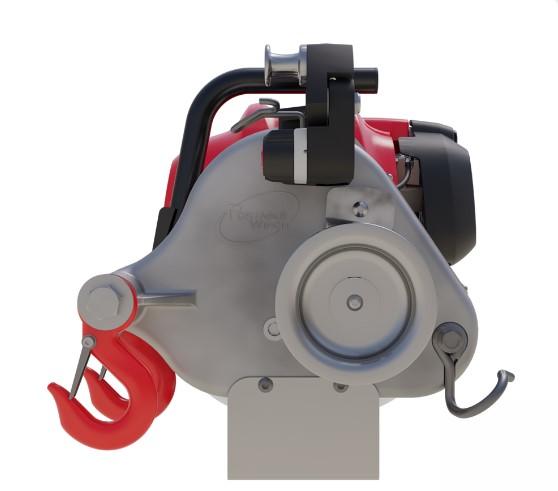

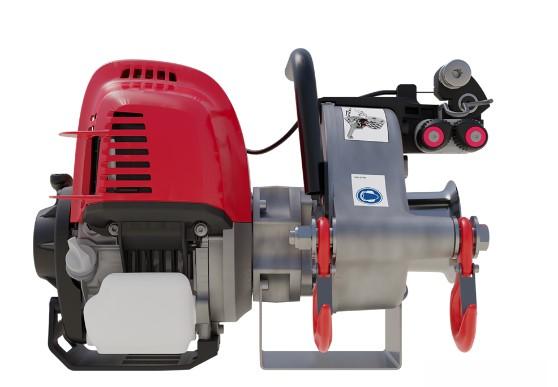

PCW4000 Petrol Pulling Winch 1000kg
Portable Winch Co. hits once again with the all-new portable capstan winch PCW4000 with quick release automatic anti roll-back device!
This brand-new model is powered by the Honda 360° inclinable 4-stroke engine GXH50 cc. It also has a centrifugal clutch that activates when you pull the rope. When the rope is released, the drum stops spinning and the quick release automatic anti rollback device does its job and holds the load in position!
You can also disengage the rope in one simple movement!

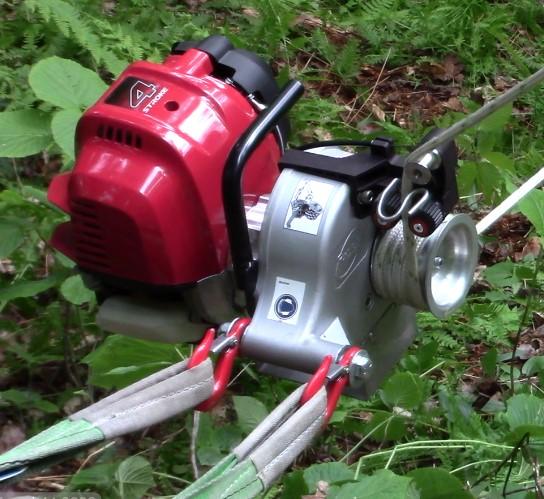

A light, powerful, safe and very simple winch to operate. Perfect for all types of work, whether to pull logs, directional felling, pull a big game, get a vehicle out of trouble, pull a boat, a dock or for any other projects, this new winch will be the ideal tool !

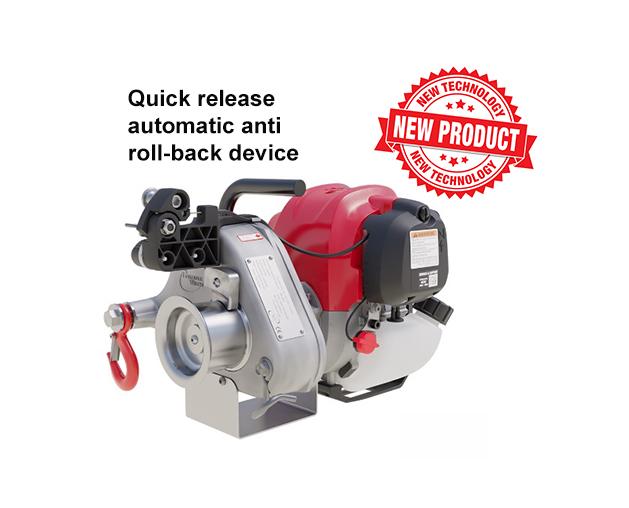

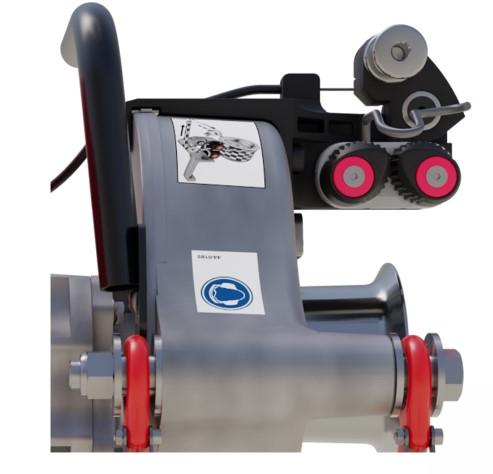

QUICK RELEASE AUTOMATIC ANTI ROLL-BACK MECHANISM
The Portable Winch Co. engineering team strikes again by designing this simple and ingenious device!
As soon as you pull the rope that goes through the ARM, the centrifugal clutch activates, and the winch begins to pull. As soon as the rope is released, the drum stops rotating and the automatic mechanism does its job by holding the load in position! Disengage the rope in one simple movement! Nothing is easier.

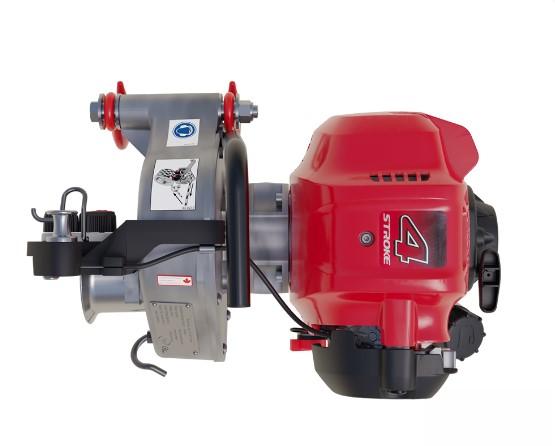

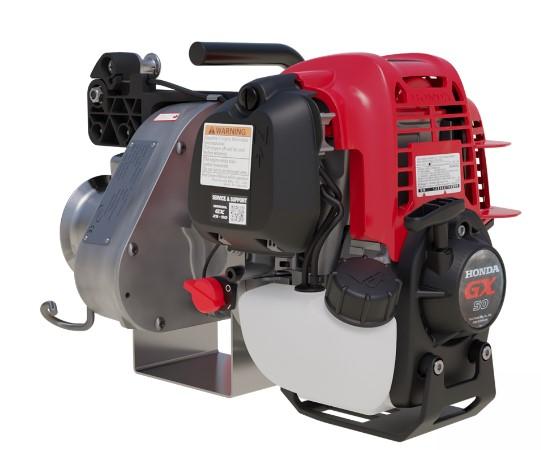

HONDA 4-STROKE GXH50 cc 360° INCLINABLE ENGINE
This Honda's GXH50 cc engine offers high output and light weight with excellent fuel efficiency. It's the first Honda four-stroke model in the two-horsepower class that is 360-degrees inclinable during operation and storage. Among its many features, smooth performance, proven reliability, easy starting, easy to use and maintain and emissions compliant!
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
Spec
PCW4000 Petrol Pulling Winch 1000kg Ref: 167-2-4
More Information
| Gear Ratio |
200:1 |
| Engine/Motor |
Honda 4-stroke GXH-50 cc |
| Rope Size (Diameter) |
Min 10mm | Max 13mm | Ideal 12mm |
| Speed with Installed Capstan |
13.4 m/mim |
| Installed Capstan Size |
76mm |
| Max Lifting Capacity |
Not Rated For Lifting |
| Max Pulling Capacity |
1000kg |
| Manufacturer |
PORTABLE WINCH |
| GTIN / EAN13 |
690581022364 |
