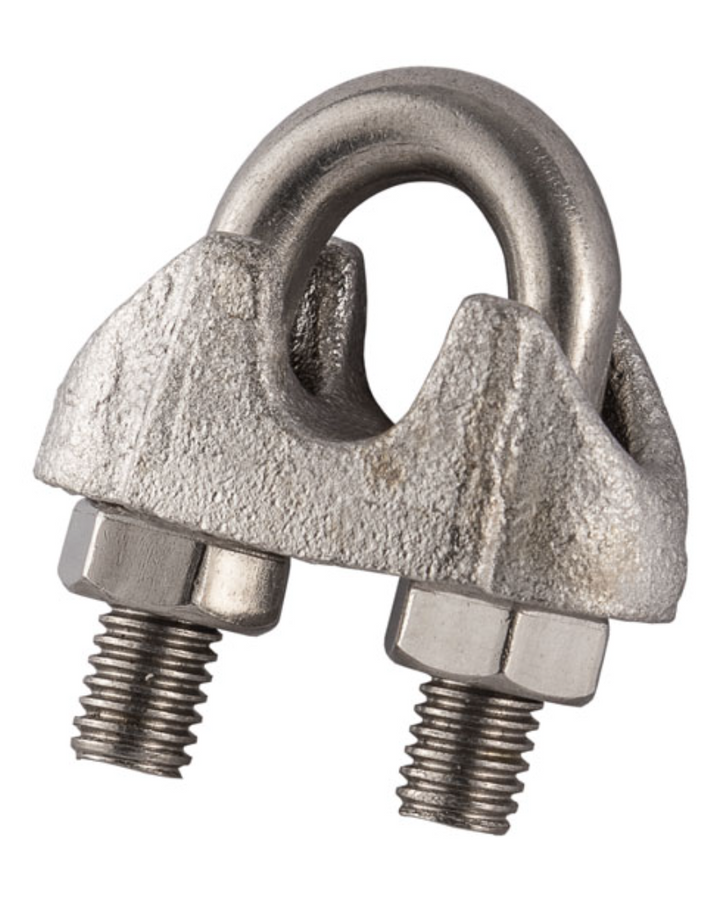

Stainless Steel AISI 316 Wire Rope Grip

Stainless Steel AISI 316 Wire Rope Grip

by GT
SKU 286-1215-1
Availability:
11 in stock, ready to be shipped
Availability:
24 in stock, ready to be shipped
Availability:
37 in stock, ready to be shipped
Availability:
34 in stock, ready to be shipped
Availability:
34 in stock, ready to be shipped
Availability:
21 in stock, ready to be shipped
Availability:
20 in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
£0
£0.00 - £5.62£4.68
£1.08£0.90
£0.00 - £5.62£4.68
£1.08£0.90

Pickup available at Orplex Limited

Usually ready in 4 hours
Ordered by 3pm for next working day delivery

NATIONWIDE DELIVERY

Next cut off time 0 Day(s) 4 hours 33 minutes
Order now for delivery on Friday, April 04

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

Stainless Steel Wire Rope Grip

  • AISI 316 stainless steel.
  • Sizes generally to DIN 741.
  • Polished finish.
  • Commercial quality.
  • Certification available

                          Spec

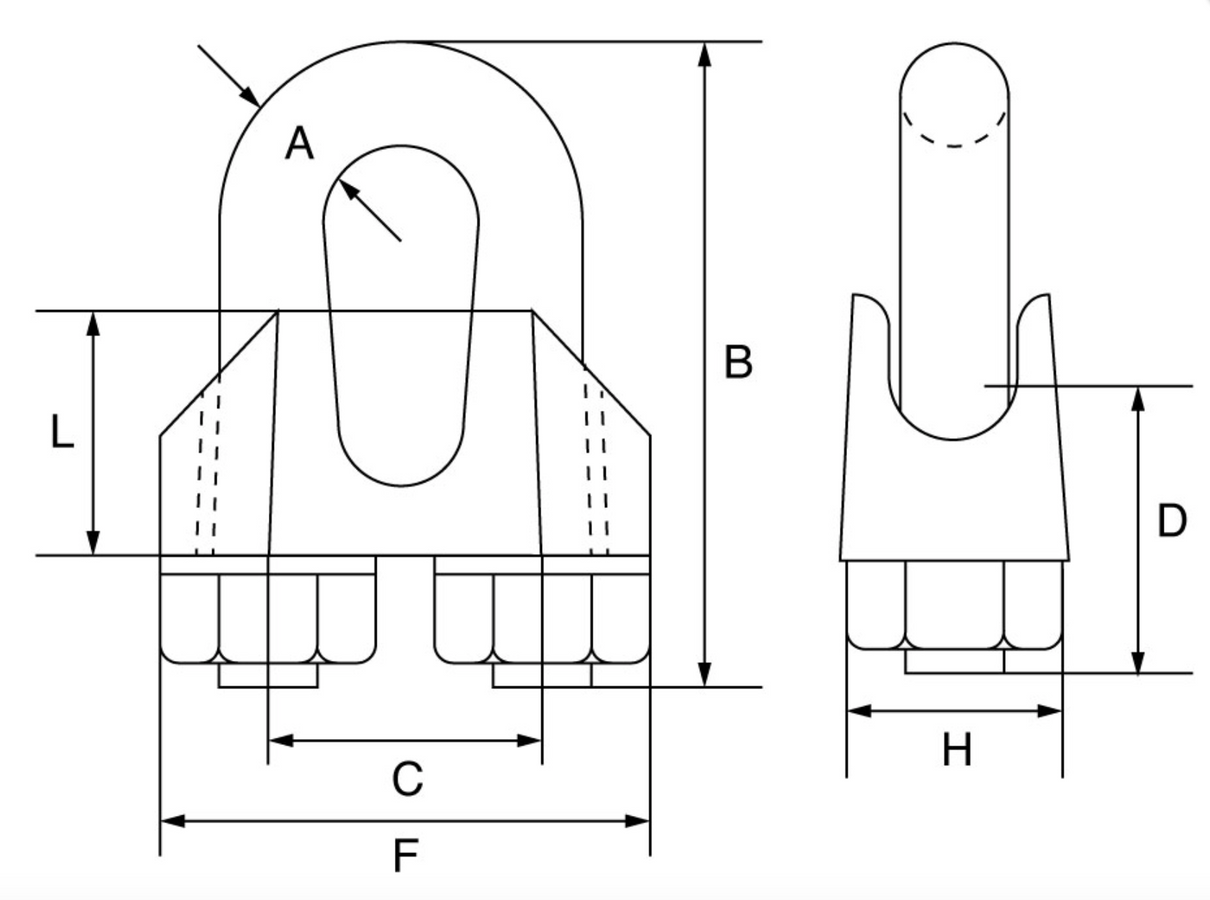

                          SKU Wire Rope Dia A B C D F H L Weight
                          mm mm mm mm mm mm mm mm kgs/100
                          286-125-1 3 4 20 9 12 21 10 10 1.4
                          286-125-2 5 5 24 11 13 23 11 10 1.5
                          286-125-3 6.5 5 28 13 15 26 12 11 2.1
                          286-125-4 8 6 34 16 19 30 14 15 4.1
                          286-125-5 10 8 42 19 22 34 18 17 6.8
                          286-125-6 13 10 55 24 30 42 23 21 13
                          286-125-7 16 12 63 29 33 50 26 26 21
                          286-125-8 19 12 75 32 38 54 29 30 28
                          286-125-9 22 14 85 37 44 61 33 34 40



                          Downloads

                            Duct rod data sheetProduct data sheet
