Tiger Rated Steel Scaffold Hook with Captive Pin / Twist Lock Ref: 224-1-21 from RiggingUK

Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twist Lock

by Tiger Products
SKU 224-1-21
Availability:
Out of stock
Sold out
£32.64 - £32.64
£32.64
£32.64 - £32.64
£32.64

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

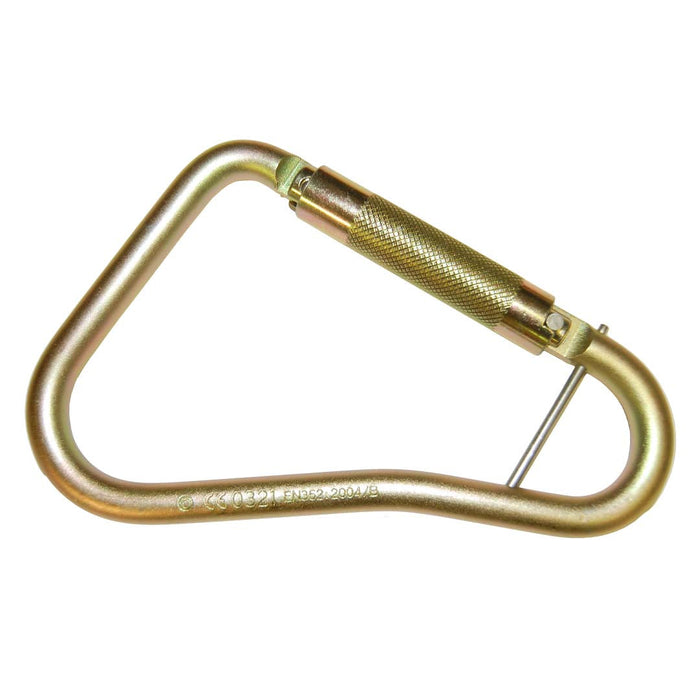

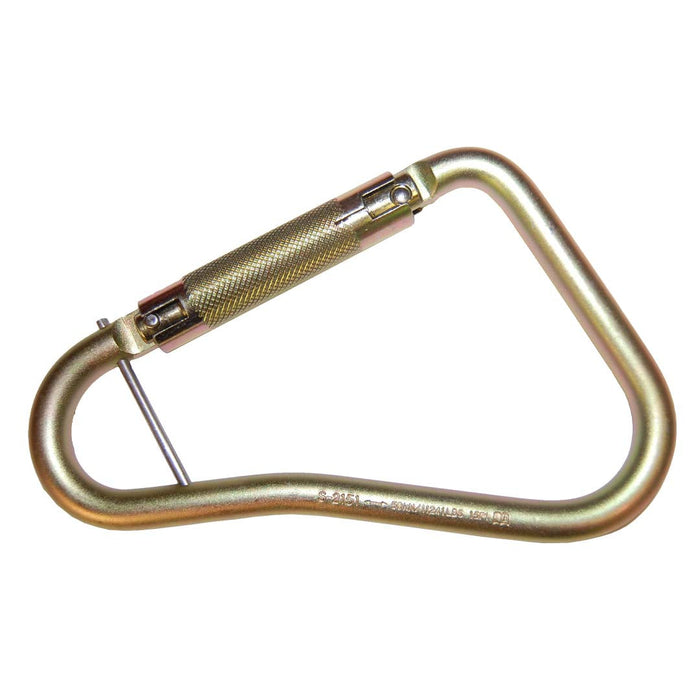

Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twist Lock Ref: 224-1-21
  • Quick and versatile rigging point for personal fall  protection equipment
  • These units meet the requirements within EN 362:2004/B
  • Minimum breaking strength 50kN / 11240lb
  • High tensile steel
  • CE Certified - CE 0321
  • Scaffold hooks are provided with captive pins to prevent rotation during use

Spec

Product Code Description Minimum Breaking Strength Dimensions (mm) Weight (g)
A B C
224-1-21 Offset Steel 'Scaffold' Hook with Captive Pin/Twist Lock 50kN / 11240lb 142 222 56 723

Tiger Rated Steel Scaffold Hook with Captive Pin / Twist Lock

Downloads

Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twsit lock from riggingUK

Duct rod data sheetProduct data sheet

Legislation

Certification:

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. Each unit is also supplied with Manufacturer’s Instructions for Use.

Recommendation:

We advise that structural calculations are carried out on all beams and supporting steel work by qualified engineering departments to ensure safe operation.
