Trailer Winch 3T Horizontal Mount with Hook & 8m Webbing

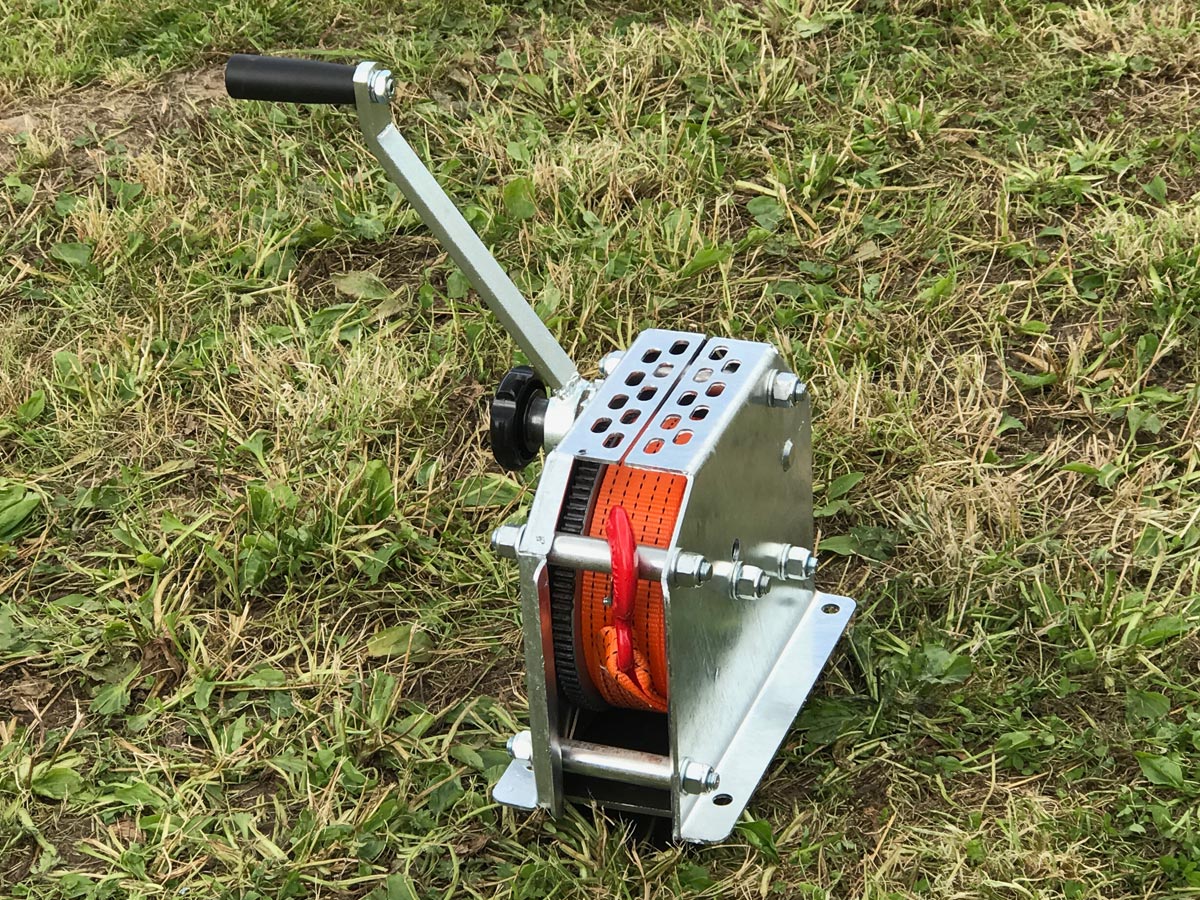

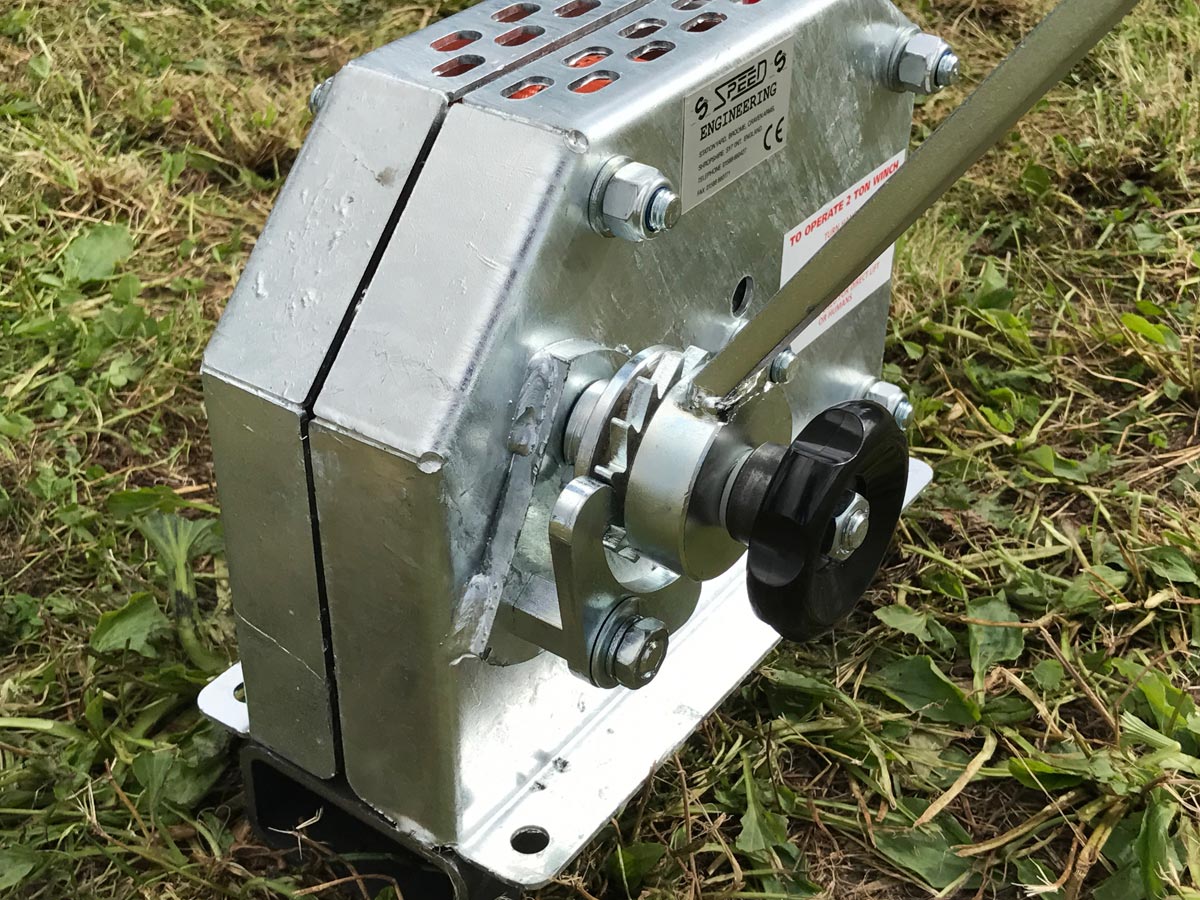

Trailer Winch 3T Horizontal Mount fitted with Hook & 8m Webbing

These UK Built Trailer winches are of a high build quality and the best materials are used to ensure a long trouble-free life, needing only the minimum of maintenance. A truly well built product which will reflect the quality you build into your trailer.

✓ All parts are galvanised or zinc plated, offering a superior corrosion resistance.
✓ Gears are machine cut from solid blanks to ensure long life and trouble-free operation.
✓ The body is made from 3 mm steel and is held together with multiple stay pins.
✓ Gravity operated double ratchet has no spring to weaken or lose, plus can never disengage accidentally.

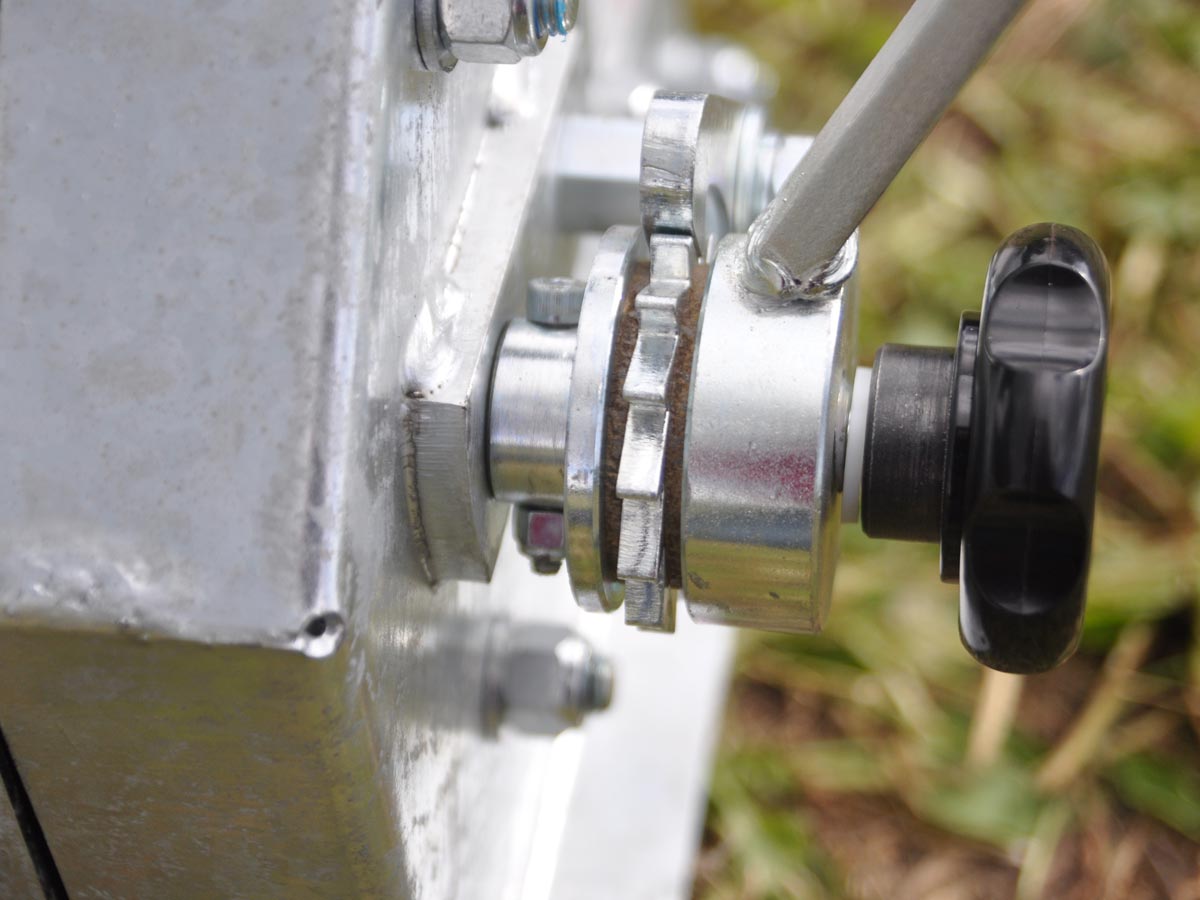

✓ The braking system is simple and automatic to operate.
✓ The mechanical advantage is designed into each winch to keep handle effort low for smooth operation.
✓ The complete winch is enclosed for safe operating, ie trapped fingers in the gears, etc.

Datasheet.pdf

The SP3TS30 can be fitted to various trailers, eg Ifor Williams ranges CT/TB/GH/TT, Bateson’s Transport, PRG, Brian James.

Spec

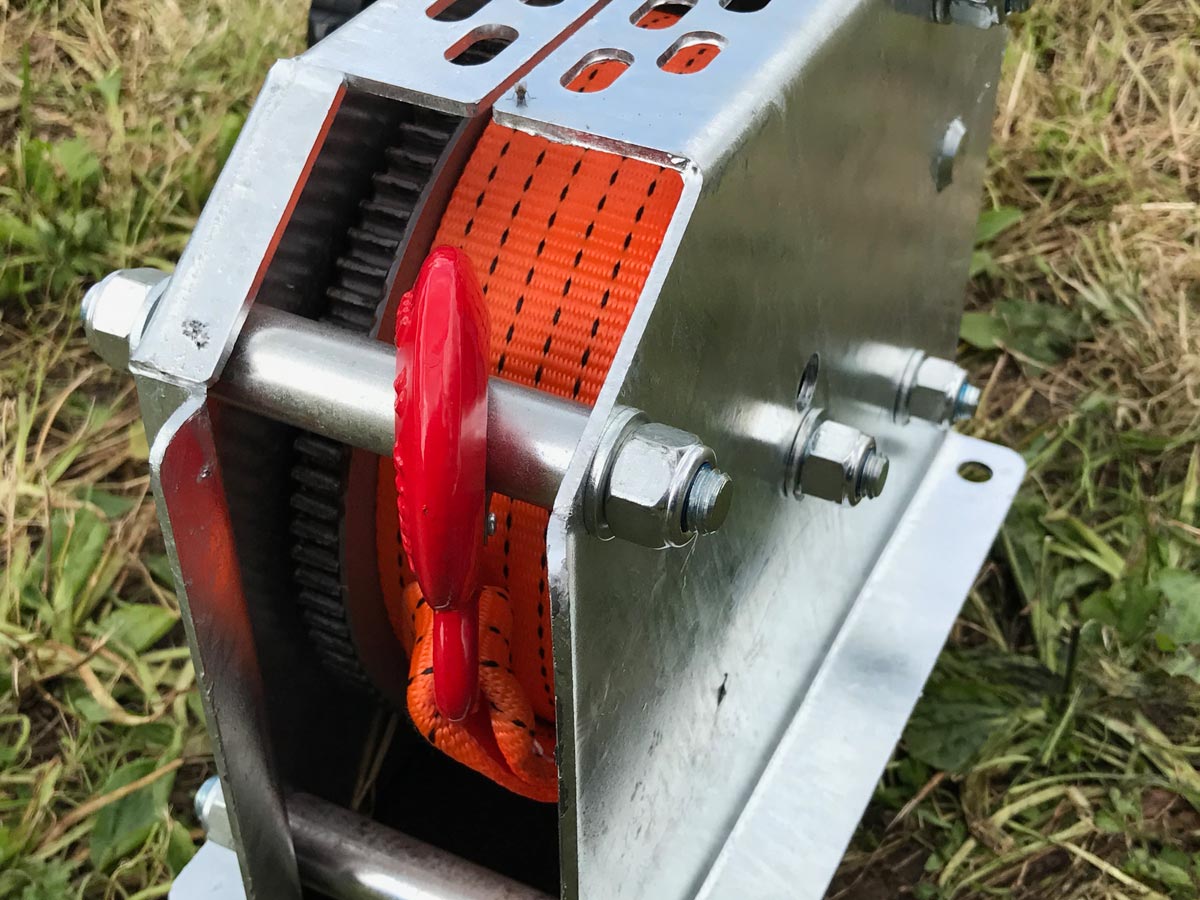

SP3TS30 comes fitted with a 50 mm wide x 8 metre polyester strap complete with eye hook on the end, as it is a 3000kg winch it is lower geared, so it takes less effort to turn the handle. Polyester strapping is kinder to the hands of the operator and is positively anchored to the drum for safety.

Mount: Horizontal mounted
Rating: 3000 kg rolling weight up a 30 degree slope
Shipping Weight: 14kg

Manufactured in the UK
